OmniOutliner: Add Numeric Column

This command will add a new column formatted to display numeric content. If a single column is selected when the command is invoked, the new column will be added after the selected column, otherwise the new column is appended to end (right) of the current columns.

Scope and Syntax

Language: English (United States 🇺🇸 · Great Britain 🇬🇧 · Australia 🇦🇺 · Canada 🇨🇦)

Scope: OmniOutliner

Command phrase variations (words in [brackets] are optional):

• “Add Numeric Column”

Requirements

• Application: OmniOutliner: 5.10 (macOS), OmniOutliner 3.9.1 (iOS/iPadOS)
• System: macOS 12, iOS 15, iPadOS 15

Video: Add Numeric Column

Add a new column formatted to display numeric content.

PLAY (E) PAUSE BACK REWIND

Video: Add Numeric Column

Add a new column formatted to display numeric content.

PLAY (E) PAUSE BACK REWIND

Downloads

• ⇩ COMMANDS-FILE (OmniOutliner 5) (macOS)
• ⇩ SHORTCUT-LINK (“Add Numeric Column”) (iOS/iPadOS)

Script Code

If a single column is selected when the command is invoked, the new column will be added after the selected column, otherwise the new column is appended to end (right) of the current columns.

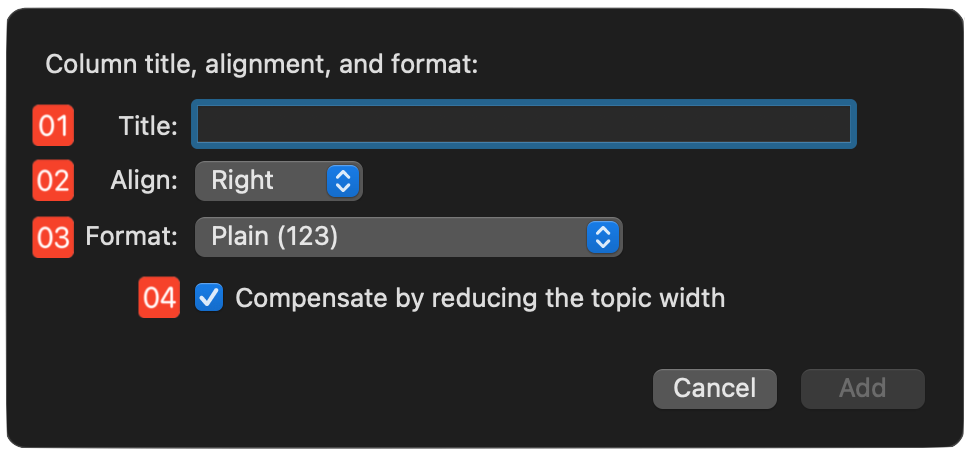

The command presents a form dialog with the following controls for setting the parameters for the created column.

 1  Column Title • The title for the new column. The width of the column is determined by the length of the column title.

 2  Text Alignment • The text alignment options to apply to the column text: Left, Center, Right, Justified, and Natural.

 3  Numeric Format • The formatting to be applied to the numeric values: Plain (123), Decimal (123.45), Percent (123%), Decimal Percent (123.45), Decimal Separators (1,234.12), Localized Currency

 4  Fitting Column • If this option is selected, the width of the column will be subtracted from the topic column to make room for the added column to fit in the window document view.

Here is the script code:

Add Numeric Column
Copy

(async () => {
	try {
		function createUtterance(textToSpeak){
			AlexID = (
				(app.platformName === "macOS") ?
				"com.apple.speech.synthesis.voice.Alex" :
				"com.apple.speech.voice.Alex"
			)
			voiceObj = Speech.Voice.withIdentifier(AlexID)
			voiceRate = 0.4
			utterance = new Speech.Utterance(textToSpeak)
			utterance.voice = voiceObj
			utterance.rate = voiceRate
			return utterance
		}
		var synthesizer = new Speech.Synthesizer()

		try {document.name} catch(err){
			throw {name:"Missing Resource",message:"No outline document is open."}
		}

		var inputForm = new Form()

		textInputField = new Form.Field.String(
			"columnTitle",
			"Title",
			null
		)

		alignmentMenu = new Form.Field.Option(
			"alignmentValue",
			"Align",
			TextAlignment.all,
			null,
			TextAlignment.all[2]
		)

		formats = ["Plain (123)", "Decimal (123.00)", "Percent (123%)", "Decimal Percent (123.12%)", "Decimal Separators (1,234.12)", "Currency"]
		formatMenu = new Form.Field.Option(
			"formatType",
			"Format",
			[0, 1, 2, 3, 4, 5],
			formats,
			0
		)

		checkSwitchField = new Form.Field.Checkbox(
			"shouldCompensate",
			"Compensate by reducing the topic width",
			true
		)

		inputForm.addField(textInputField)
		inputForm.addField(alignmentMenu)
		inputForm.addField(formatMenu)
		inputForm.addField(checkSwitchField)

		inputForm.validate = function(formObject){
			columnTitle = formObject.values['columnTitle']
			textStatus = (columnTitle && columnTitle.length > 0) ? true:false
			return textStatus
		}

		formPrompt = "Column title, alignment, and format:"
		formButtom = "Add"
		spokenPrompt = "Please indicate the column title, alignment, and format."

		utterance = createUtterance(spokenPrompt)
		synthesizer.speakUtterance(utterance)

		formObject = await inputForm.show(formPrompt, formButtom)

		var columnTitle = formObject.values['columnTitle']
		var alignmentValue = formObject.values['alignmentValue']
		var formatType = formObject.values['formatType']
		var shouldCompensate = formObject.values['shouldCompensate']

		switch(formatType) {
			case 0:
				var fmtr = Formatter.Decimal.plain
				break;
			case 1:
				var fmtr = Formatter.Decimal.decimal
				break;
			case 2:
				var fmtr = Formatter.Decimal.percent
				break;
			case 3:
				var fmtr = Formatter.Decimal.percentWithDecimal
				break;
			case 4:
				var fmtr = Formatter.Decimal.thousandsAndDecimal
				break;
			case 5:
				var fmtr = Formatter.Decimal.currency()
				break;
			default:
				var fmtr = Formatter.Decimal.plain
				break;
		}

		var tree = document.outline
		var editor = document.editors[0]

		selectedCols = editor.selection.columns
		if(selectedCols.length === 1){
			var targetColumn = selectedCols[0]
		} else {
			var targetColumn = null
		}

		// calculate the new column width based upon title and font size
		titleFontSize = tree.columnTitleStyle.get(Style.Attribute.FontSize)
		pfmtr = Formatter.Decimal.plain
		fontSize = parseInt(pfmtr.stringFromDecimal(titleFontSize))
		var columnWidth = (columnTitle.length * fontSize)
		columnWidth = (columnWidth >= 36) ? columnWidth : 36

		tree.addColumn(
			Column.Type.Number,
			editor.afterColumn(targetColumn),
			column => {
				column.title = columnTitle
				editor.setWidthForColumn(column, columnWidth)
				column.style.set(Style.Attribute.ParagraphAlignment, alignmentValue)
				column.formatter = fmtr
				if(shouldCompensate){
					currentWidth = editor.widthForColumn(tree.outlineColumn)
					newWidth = currentWidth - columnWidth
					if(newWidth > 36){
						editor.setWidthForColumn(tree.outlineColumn, newWidth)
					}
				}
			}
		)

		utterance = createUtterance("Done!")
		synthesizer.speakUtterance(utterance)
	}
	catch(err){
		if(!err.causedByUserCancelling){
			utterance = createUtterance(err.message)
			synthesizer.speakUtterance(utterance)
			//new Alert(err.name, err.message).show()
		}
	}
})();
