Script: New Run Omni Automation Script Voice Control Command

Here is an AppleScript script tool (macOS) for generating the XML of a new Voice Control Open URL command. this script tool will generate the values for all of the placeholders (shown in orange) and place the resulting XML on the clipboard. The encoded script URL string value for the key CustomURLStringList can be created by the script, or be inserted later by the user.

For example, the following Omni Automation script copied to the clipboard prior to running the script tool, will return XML similar to the examples.

Hello World!
Copy

new Alert("Greeting", "Hello World!").show()

The XML for an Open URL Voice Control command that has a system-wide scope:

AppleScript Script: New Open URL Command XML
Copy

<key>Custom.672708148.08394381</key>
<dict>
	<key>CustomCommands</key>
	<dict>
		<key>en_US</key>
		<array>
			<string>Show Greeting</string>
		</array>
	</dict>
	<key>CustomModifyDate</key>
	<date>2022-04-26T16:22:28Z</date>
	<key>CustomScope</key>
	<string>com.apple.speech.SystemWideScope</string>
	<key>CustomType</key>
	<string>URL</string>
	<key>CustomURLStringList</key>
	<array>
		<string>omnifocus://localhost/omnijs-run?script=new%20Alert%28%22Greeting%22%2C%20%22Hello%20World%21%22%29%2Eshow%28%29</string>
	</array>
	<key>Enabled</key>
	<true/>
</dict>

The XML for an Open URL Voice Control command that has an application-specific scope:

AppleScript Script: New Open URL Command XML
Copy

<key>Custom.672708148.08394381</key>
<dict>
	<key>CustomAppName</key>
	<string>OmniFocus</string>
	<key>CustomCommands</key>
	<dict>
		<key>en_US</key>
		<array>
			<string>Show Greeting</string>
		</array>
	</dict>
	<key>CustomModifyDate</key>
	<date>2022-04-26T16:22:28Z</date>
	<key>CustomScope</key>
	<string>com.omnigroup.OmniFocus3</string>
	<key>CustomType</key>
	<string>URL</string>
	<key>CustomURLStringList</key>
	<array>
		<string>omnifocus://localhost/omnijs-run?script=new%20Alert%28%22Greeting%22%2C%20%22Hello%20World%21%22%29%2Eshow%28%29</string>
	</array>
	<key>Enabled</key>
	<true/>
</dict>

Property List Editor and Tools

1st-Run of the Script Command

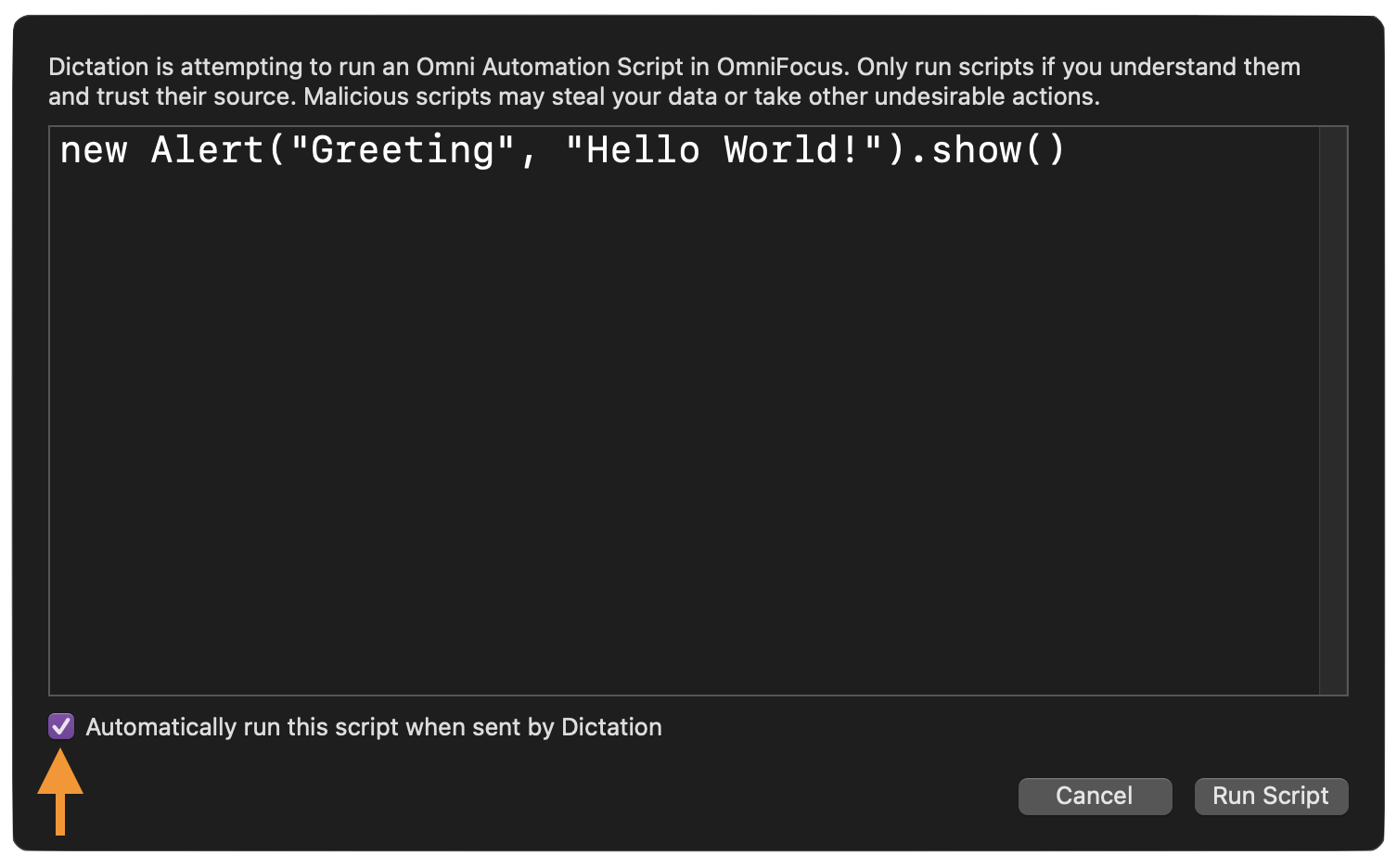

For security purposes, external Omni Automation script URLs must be approved by the user. In the forthcoming security dialog, there is an option to indictate that further approval is not necessary (see below). Full documentation regarding Omni Automation script security is available here.

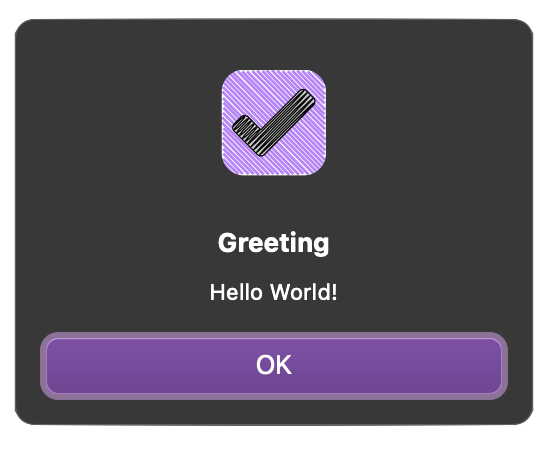

After approval by the user:

AppleScript Script Code

The code of the script tool, written in AppleScript-ObjC in the Script Debugger editor, is shown below:

AppleScript Script: New Run Omni Automation Script Voice Control Command
Copy

use AppleScript version "2.4" -- Yosemite (10.10) or later
use framework "Foundation"
use scripting additions

-- classes, constants, and enums used
property NSUserDefaults : a reference to current application's NSUserDefaults
property NSNumberFormatter : a reference to current application's NSNumberFormatter
property NSNumberFormatterNoStyle : a reference to 0
property NSCharacterSet : a reference to current application's NSCharacterSet
property NSString : a reference to current application's NSString


property scriptID : "com.nyhthawk-productions.script.vc-run-omni-automation-script"
property defaultTargetAppName : "OmniFocus"
property defaultTargetAppID : "com.omnigroup.OmniFocus4"

global targetAppName, targetAppID

## USER DEFAULTS
set theDefaults to NSUserDefaults's alloc()'s initWithSuiteName:scriptID
theDefaults's registerDefaults:{targetAppName:defaultTargetAppName, targetAppID:defaultTargetAppID}
set targetAppName to (theDefaults's stringForKey:"targetAppName") as string
set targetAppID to (theDefaults's stringForKey:"targetAppID") as string

## USER PROMPT
repeat
	set dialogMessage to "This script will generate the XML text for a new Open URL Voice Command element that will execute an Omni Automation script." & return
	set dialogMessage to dialogMessage & return & "Target Application: " & targetAppName
	set dialogMessage to dialogMessage & return & "Application ID: " & targetAppID
	display dialog dialogMessage with title "Voice Control Command: Open URL" buttons {"Cancel", "Set App", "Continue"} default button 3
	set actionChoice to the button returned of the result
	if actionChoice is "Continue" then
		exit repeat
	else if actionChoice is "Set App" then
		set targetApp to choose application with prompt "Select the application to use:"
		tell targetApp
			set targetAppID to the id of it
			set targetAppName to the name of it
		end tell
		theDefaults's setObject:targetAppID forKey:"targetAppID"
		theDefaults's setObject:targetAppName forKey:"targetAppName"
	end if
end repeat

## QUERY USER
set dialogMessage to "Should this Voice Control command be available only in " & targetAppName & " or System-Wide?"
display dialog dialogMessage with title "Availability of Voice Control Command" buttons {"Cancel", "System-Wide", targetAppName} default button 3
set chosenScope to the button returned of the result

## PROMPT FOR SCRIPT ENCODING
display dialog "Should this script encode the Omni Automation script currently on the clipboard?" buttons {"Cancel", "Skip Encoding", "Encode Copied Script"} default button 3 with title "Voice Control Command: Open URL"
if button returned of the result is "Encode Copied Script" then
	set lowercaseAppName to my changeCaseOfText((targetAppName as string), 1)
	set contentsOfSelection to get the clipboard
	set encodedString to my encodeUsingPercentEncoding(contentsOfSelection)
	set scriptURL to lowercaseAppName & "://localhost/omnijs-run?script=" & encodedString
	set URLPlaceholder to scriptURL
else
	set URLPlaceholder to "REPLACE-WITH-URL"
end if

## PROMPT FOR COMMAND STRING
repeat
	display dialog "Enter the command text or phrase:" default answer "" with title "Voice Control Command: Open URL"
	set commandString to the text returned of the result
	if commandString is not "" then exit repeat
end repeat

## GENERATE COMMAND IDENTIFIER
set IDstring to ("Custom." & generateAbsoluteTimeID()) as string

## GENERATE DATE STRING
set dateString to do shell script "date +'%Y-%m-%dT%H:%M:%SZ'"

## GET THE CURRENT LOCALE
set localeString to user locale of (system info)

## CREATE THE XML ELEMENT
if chosenScope is "System-Wide" then
	set commandXML to "		<key>" & IDstring & "</key>
		<dict>
			<key>CustomCommands</key>
			<dict>
				<key>" & localeString & "</key>
				<array>
					<string>" & commandString & "</string>
				</array>
			</dict>
			<key>CustomModifyDate</key>
			<date>" & dateString & "</date>
			<key>CustomScope</key>
			<string>com.apple.speech.SystemWideScope</string>
			<key>CustomType</key>
			<string>URL</string>
			<key>CustomURLStringList</key>
			<array>
				<string>" & URLPlaceholder & "</string>
			</array>
			<key>Enabled</key>
			<true/>
		</dict>
"
else
	set commandXML to "		<key>" & IDstring & "</key>
		<dict>
			<key>CustomAppName</key>
			<string>" & targetAppName & "</string>
			<key>CustomCommands</key>
			<dict>
				<key>" & localeString & "</key>
				<array>
					<string>" & commandString & "</string>
				</array>
			</dict>
			<key>CustomModifyDate</key>
			<date>" & dateString & "</date>
			<key>CustomScope</key>
			<string>" & targetAppID & "</string>
			<key>CustomType</key>
			<string>URL</string>
			<key>CustomURLStringList</key>
			<array>
				<string>" & URLPlaceholder & "</string>
			</array>
			<key>Enabled</key>
			<true/>
		</dict>
"
end if

## ANNOUNCE TO USER
set the clipboard to commandXML
display dialog "The new Open URL Voice Command XML is on the clipboard." buttons {"OK"} default button 1 with title "Voice Control Command: Open URL"

on encodeUsingPercentEncoding(sourceText)
	try
		-- create a Cocoa string from the passed AppleScript string, by calling the NSString class method stringWithString:
		set the sourceString to NSString's stringWithString:sourceText
		-- indictate the allowed characters that do not get encoded
		set allowedCharacterSet to NSCharacterSet's alphanumericCharacterSet
		-- apply the indictated transformation to the Cooca string
		set the adjustedString to the sourceString's stringByAddingPercentEncodingWithAllowedCharacters:(allowedCharacterSet)
		-- convert from Cocoa string to AppleScript string
		return (adjustedString as string)
	on error msg
		display dialog msg
	end try
end encodeUsingPercentEncoding

on changeCaseOfText(sourceText, caseIndicator)
	-- create a Cocoa string from the passed text, by calling the NSString class method stringWithString:
	set the sourceString to NSString's stringWithString:sourceText
	-- apply the indictated transformation to the Cocoa string
	if the caseIndicator is 0 then
		set the adjustedString to sourceString's uppercaseString()
	else if the caseIndicator is 1 then
		set the adjustedString to sourceString's lowercaseString()
	else
		set the adjustedString to sourceString's capitalizedString()
	end if
	-- convert from Cocoa string to AppleScript string
	return (adjustedString as string)
end changeCaseOfText

on generateAbsoluteTimeID()
	## 669490008.038141
	set currentAbsoluteTime to current application's CFAbsoluteTimeGetCurrent()
	set fmtr to NSNumberFormatter's new()
	fmtr's setFormat:"#.#########"
	set exportDateString to NSString's stringWithFormat_("%@", fmtr's stringFromNumber:currentAbsoluteTime) as string
	if length of exportDateString is not 23 then
		repeat until length of exportDateString is 18
			set exportDateString to exportDateString & (random number from 1 to 9) as string
		end repeat
	end if
	return exportDateString
end generateAbsoluteTimeID
