Omni Automation macOS Tutorial: Recreate Graphic

In previous steps you copied the JavaScript code for creating the drawn rectangle to the clipboard, prior to deleting the shape from the current canvas. We’ll now use the copied JavaScript to recreate the original shape.

DO THIS ►

Open the console window by selecting “Show Console” from the Automation menu:

The console window will appear, displaying with your previously chosen background color and font size.

DO THIS ►

To enter the JavaScript code currently stored on the clipboard, click in the code input field at the bottom of the console window, and paste the script by typing Command-V (⌘V).

The JavaScript code for recreating the deleted shape will be inserted into the console window.

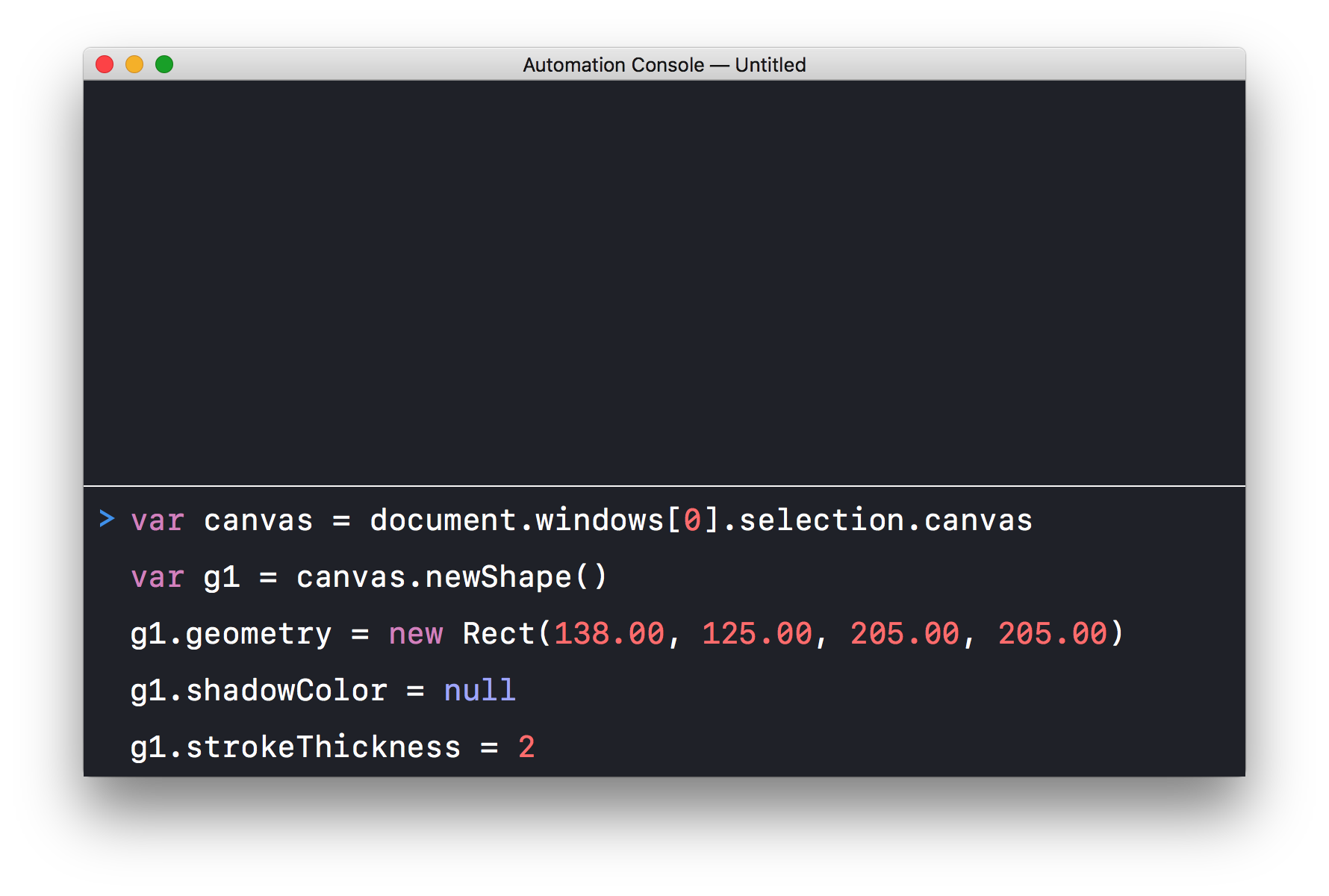

Code pasted in console

The Example Script

The pasted script contains JavaScript code for recreating the deleted shape. The following is a short explanation of the script contents, line-by-line.

var canvas = document.windows[0].selection.canvas var g1 = canvas.newShape() g1.geometry = new Rect(138.00, 125.00, 205.00, 205.00) g1.shadowColor = null g1.strokeThickness = 2
omnigraffle:///omnijs-run?script=var%20canvas%20%3D%20document%2Ewindows%5B0%5D%2Eselection%2Ecanvas%0Avar%20g1%20%3D%20canvas%2EnewShape%28%29%0Ag1%2Egeometry%20%3D%20new%20Rect%28138%2E00%2C%20125%2E00%2C%20205%2E00%2C%20205%2E00%29%0Ag1%2EshadowColor%20%3D%20null%0Ag1%2EstrokeThickness%20%3D%202

 1  Canvas Reference • The first line derives a reference to the current canvas using the canvas property of the selection object of the front window of the current document. The reference is stored in a new variable called: canvas

 2  Create Shape • A new shape is created by calling the newShape() instance method on the canvas reference stored in the variable canvas. A reference to the new shape is stored in the variable named g1 which stands for graphic 1. Note that, by default, new shapes created using the newShape() method are rectangles.

 3  Define Graphic Bounds • The size and position of the created graphic are defined by creating and applying a Rect, which is an array of four numeric values: left horizontal offset, top vertical offset, item width, and item height. The Rect is then used as the value for the shape’s geometry property. More information concerning the Rect class is available here.

 4  Turn Off Shadow • The drop shadow of the shape is turned off by setting the value of the shape’s shadowColor property to: null

 5  Set Stroke Value • The thickness of the border stroke of the shape is set to two points by setting the value of the shape’s strokeThickness property to 2. By default, measurements in OmniGraffle scripting are in points.

Run the Script

To recreate the deleted graphic, the pasted script can be executed in the console window.

DO THIS ►

To execute the script, press the “Return” or “Enter” keys.

The script will be run and any results will be displayed line-by-line in the area above the code entry field.

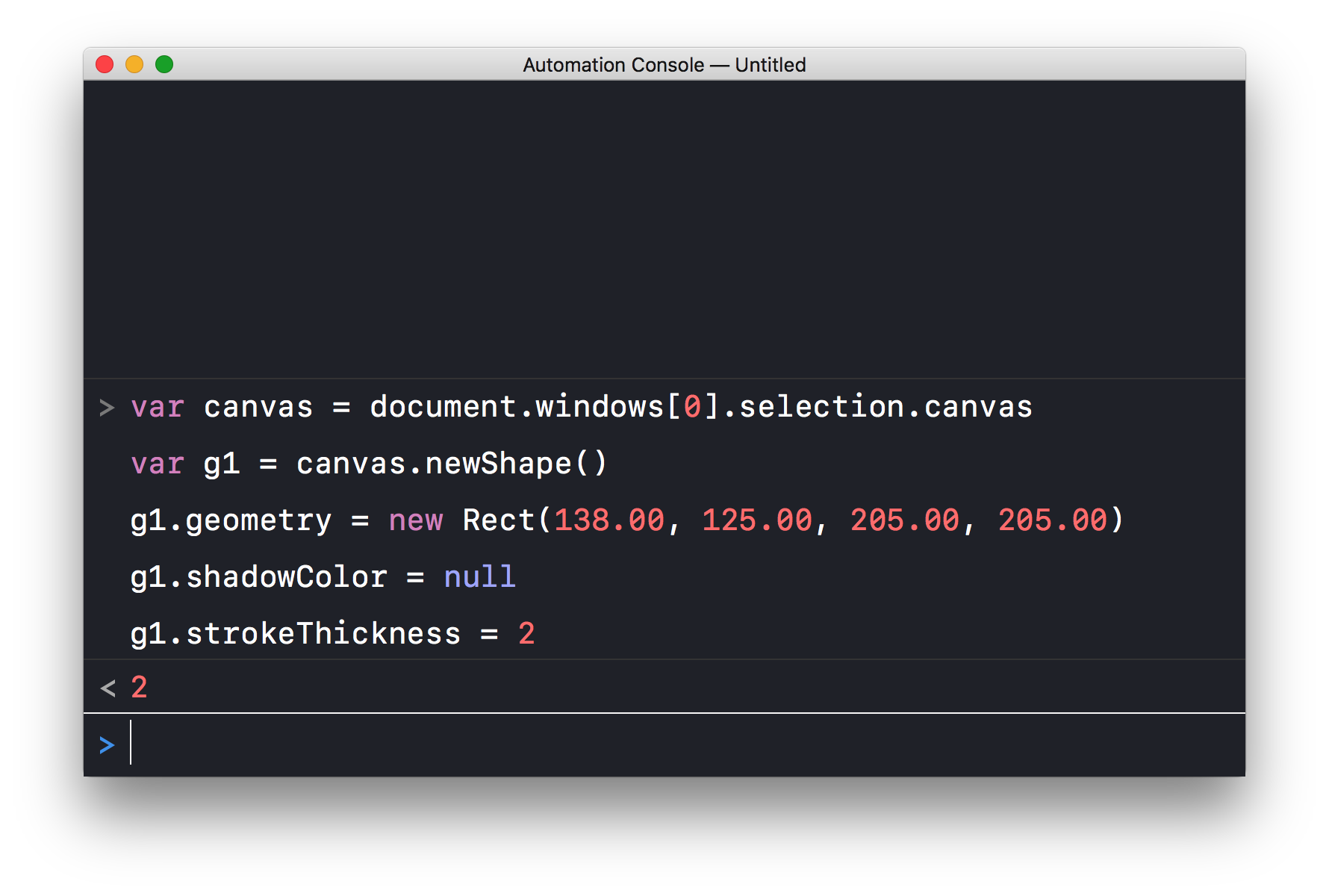

Executed code

The recreated rectangle will now appear on the current canvas of the front document.

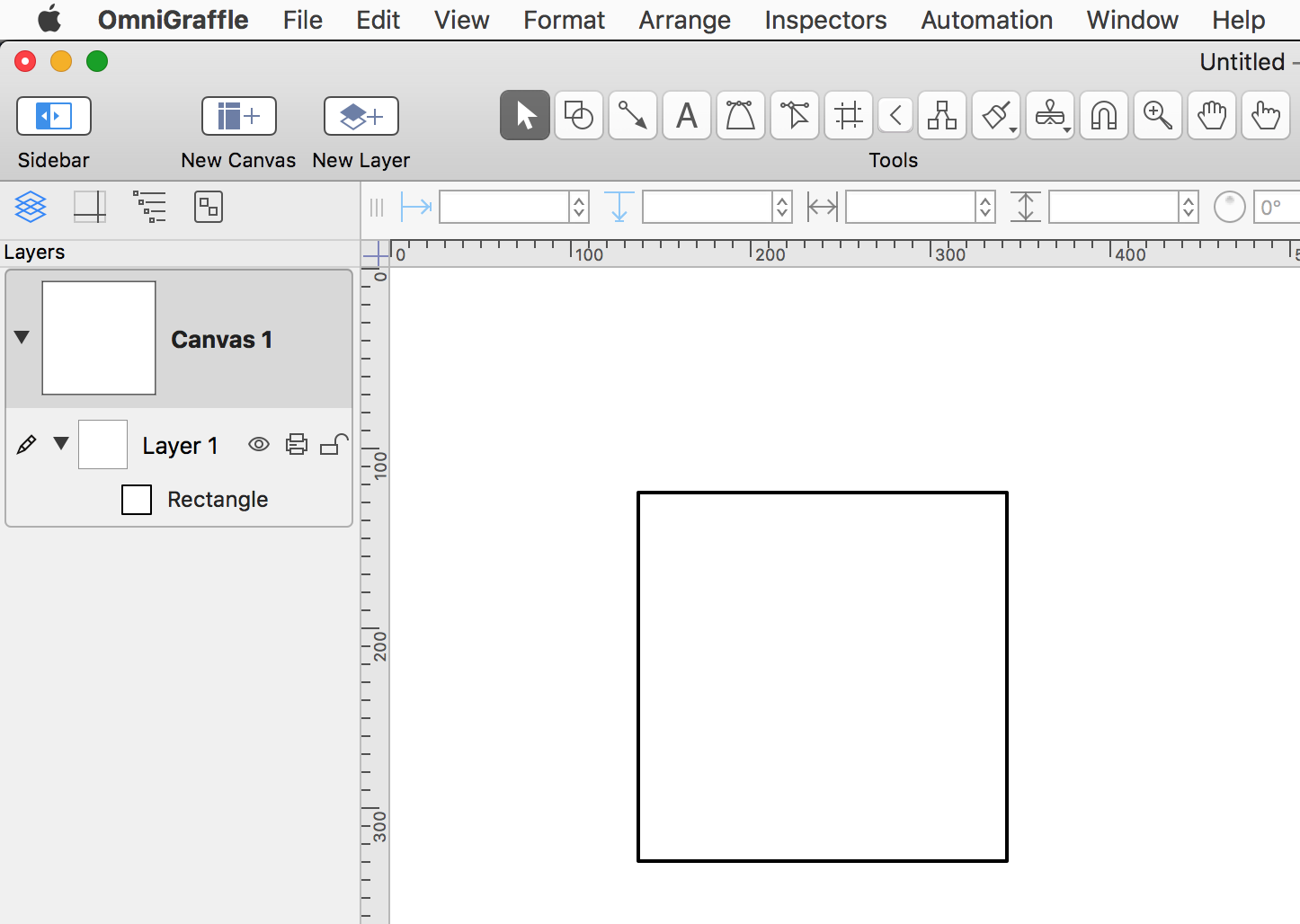

Recreated object

Next, we’ll examine how to use Omni Automation to manipulate objects. Tap the Change Shape item in the navigation view at the top right of the screen.
